3D Printer Parts MKS Robin V2.2 Controller Motherboard with TFT32 Display & WIFI Module
3D Printer Parts MKS Robin V2.2 Controller Motherboard with TFT32 Display & WIFI Module
3D Printer Parts MKS Robin V2.2 Controller Motherboard with TFT32 Display & WIFI Module
3D Printer Parts MKS Robin V2.2 Controller Motherboard with TFT32 Display & WIFI Module

3D Printer Parts MKS Robin V2.2 Controller Motherboard with TFT32 Display & WIFI Module

Regular price $83.20 $72.80 Sale

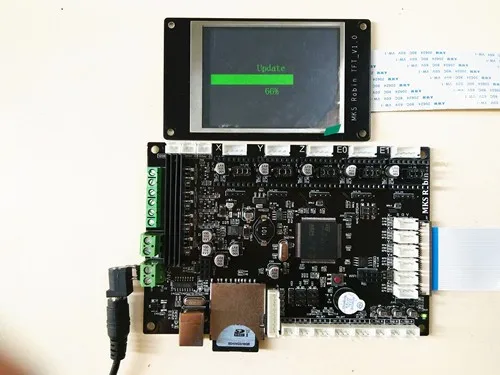

MKS Robin V2.2 Controller with Touchscreen & WIFI

Package includes :

MKS Robin V2.2 Motherboard               X               1

MKS Robin TFT32 Display                     X               1

MKS Robin - WiFi Module                      X               1

 FCC Cable                                   X              1

 USB Cable                                   X              1

Overview:

MKS Robin is created by MAKER BASE(MKS),which assemble with 2.8/3.2inch TFT touch screen already .

Also, it’s easy for users to configure the firmware and update via SD .

This controller is good for 3D printer manufactories.

Notice: MKS Robin doesn't support 2 extruders until the new firmware is published soon.

Features:

1.Use 32-bit high-speed ARM chip .

2.Assemble with 2.8/3.2inch TFT touch screen which is easy to use sensitively.

3.The firmware is self-developed, which is easy to flash and update via sd card.

4.Support custom logo and user-defined.

5.Support stepper driver replacement. Such as A4988,DRV8825,TMC2100,as well as TB6600,etc.

6.The PCB adopts 4 layers in high quality and perfect cooling.

7.Use dedicated power chip, support 12/24V input.

8.Support outage printing and blanking feeding detection.(need adding module)

9.Better MOSFET, better cooling.

10.Closed source software.

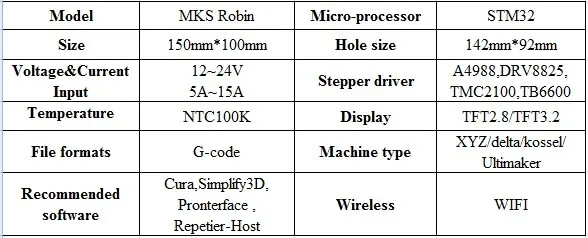

Specification in Robin Board

R5
Please click this link to download the firmare.


Firmware Update

1.Copy following documents to the root of SD card.(The file name isn’t allowed to be edited.)
R8
2.Then plug SD card to the board, and power on. It will update automatically.
R9

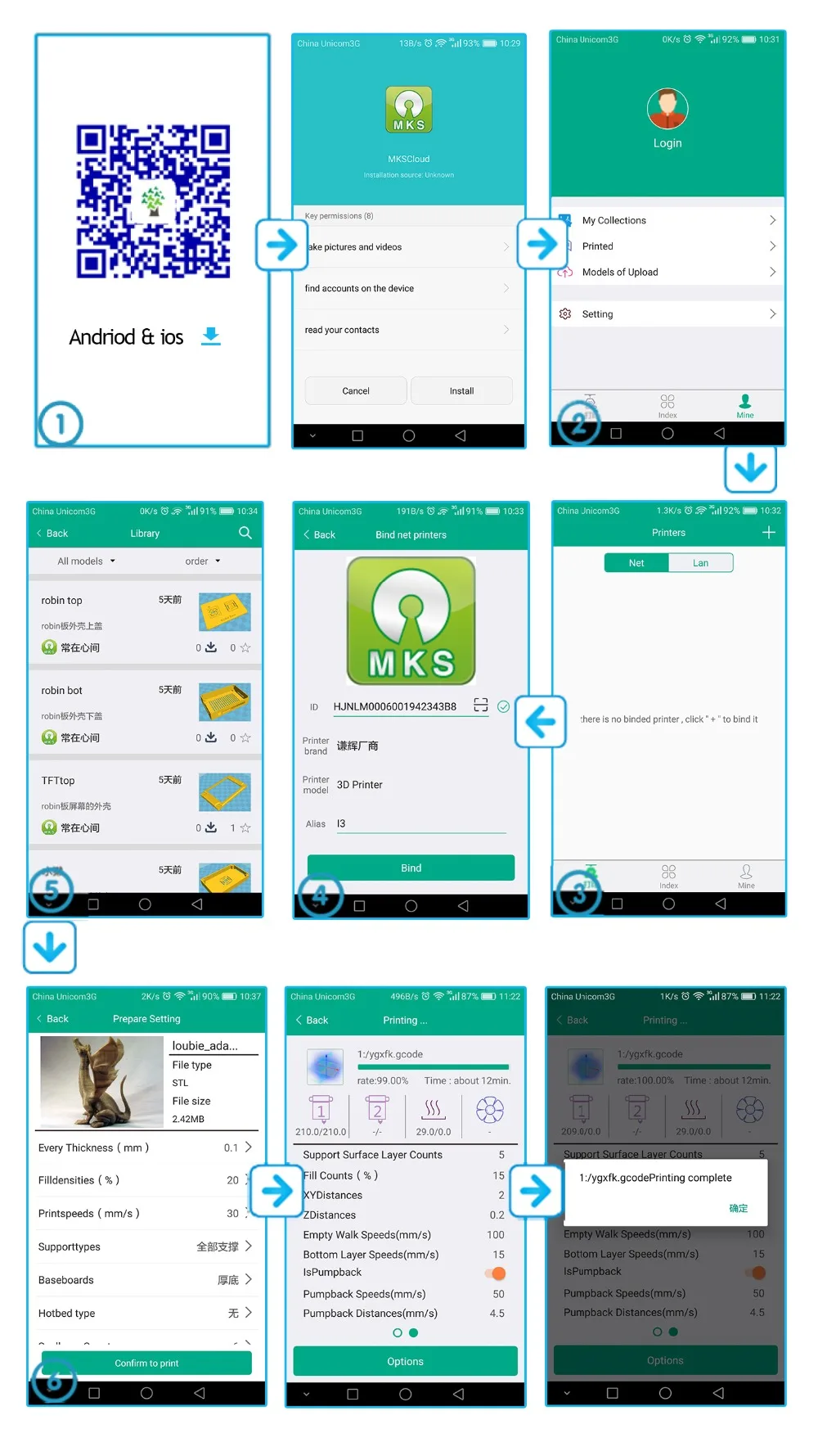

How to Download APP:

1. For Android/IOS ,it is able to search MKSCLOUD on APP STORE.

2. Visit following link


m
